PET Bottle Rinser Filler Capper for Water

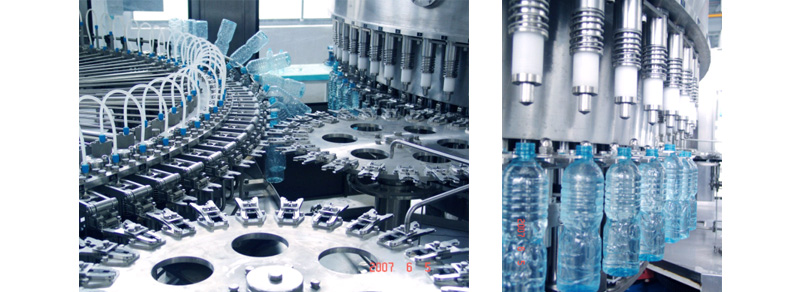

This rinser filler capper is specially designed for filling pure water and mineral water. The capacity ranges from 3000 bottles per hour to 36,000 bottles per hour. Rinser - The rotary rinsing turret consists of individual bottle neck grippers and spray nozzles to rinse the inside of PET bottles. All parts that contact the bottle are made of stainless steel or food grade plastic material. The bottle grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a secure grip. After the bottles are secured in the gripping mechanism, the bottle is turned upside down and centered above a spraying nozzle that directs a stream of rinse water into the bottle. After being rinsed, the water then drains out the bottle and automatically turned over to an upright position.

Filler - Filler has overflow style stainless steel fill heads that are suitable to fill thin flowable liquids in PET bottles. Starwheels move the bottles "by the neck" through the rinsing, filling and capping mechanisms. Filling valves are fully made of 316 stainless steel with food grade gaskets. The filling valves are secured to allow easy assembly and disassembly. Each valve is internally polished (mirror finish). If the bottle is not present the valve does not deliver any product.

Capper - Safe, clean and reliable capping. Suitable to the application of screw plastic caps on PET bottles.The capper consists of a steel structure externally shrouded with a stainless steel casing. The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The cap feeder and all the parts in contact with the caps are made of stainless steel or food grade plastic. The cap feeder guides the caps onto a chute fitted with a device to deliver them to the pick-off point with the open end down. The capping heads are raised and lowered by the action of a follower that rides on a cam. No Bottle No Capping, no caps auto stops.

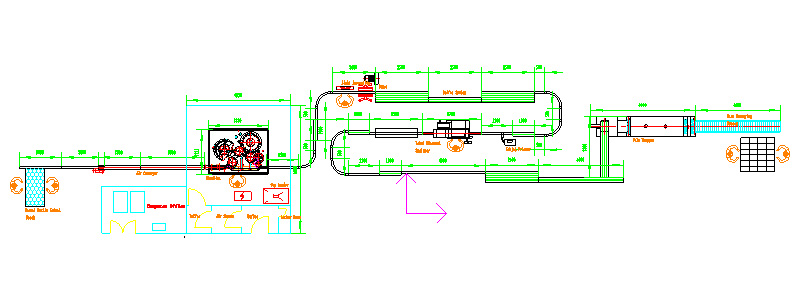

In addition to the Filling System, we also provide complete filling lines as required. Please contact our factory for further information. Contact us for more detail>>>
